common::NetconfSession Class Reference

Manages a NETCONF client session and basic datastore operations for a network device. More...

#include <NetconfSession.h>

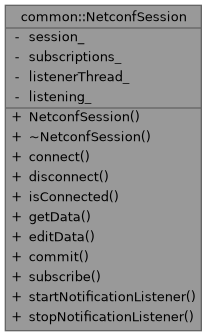

Collaboration diagram for common::NetconfSession:

Public Member Functions
	NetconfSession ()
	~NetconfSession ()
bool	connect (const std::string &ip, int port, const std::string &user, const std::string &password)
	Establishes a NETCONF session with the specified device via SSH.
void	disconnect ()
	Disconnects the NETCONF session.
bool	isConnected () const
	Checks if the NETCONF session is currently connected.
struct lyd_node *	getData (const std::string &xpath="")
	Retrieves data from the NETCONF server using the specified XPath filter.
bool	editData (const std::string &configXml)
	Edits the configuration data on the NETCONF server into the candidate datastore.
bool	commit ()
	Commits the current configuration from the candidate datastore into the running datastore.
bool	subscribe (const std::string &xpath, std::function< void(struct lyd_node *)> callback)
	Subscribes to notifications matching the specified XPath filter and registers a callback.
void	startNotificationListener ()
	Starts a background thread to listen for incoming notifications and dispatch them to registered callbacks.
void	stopNotificationListener ()
	Stops the background notification listener thread and cleans up resources.

Private Attributes
struct nc_session *	session_ = nullptr
std::map< std::string, std::function< void(struct lyd_node *)> >	subscriptions_
std::thread	listenerThread_
std::atomic< bool >	listening_ {false}

Detailed Description

Manages a NETCONF client session and basic datastore operations for a network device.

This class wraps the underlying NETCONF session lifecycle, including SSH-based connection setup, session teardown, and connectivity checks. It also provides helper methods for reading operational data and applying configuration changes via candidate datastore edit/commit workflows.

Constructor & Destructor Documentation

NetconfSession()

common::NetconfSession::NetconfSession

(

)

~NetconfSession()

common::NetconfSession::~NetconfSession

(

)

Member Function Documentation

commit()

bool common::NetconfSession::commit

(

)

Commits the current configuration from the candidate datastore into the running datastore.

Returns

true if the commit operation is successful, false otherwise.

connect()

bool common::NetconfSession::connect	(	const std::string &	ip,
		int	port,
		const std::string &	user,
		const std::string &	password
	)

Establishes a NETCONF session with the specified device via SSH.

Parameters

ip	The IP address of the device e.g., "192.168.1.1".
port	The Netconf port of the device (standard is 830).
user	The username for authentication.
password	The password for authentication.

Returns

true if the connection is successful, false otherwise.

disconnect()

void common::NetconfSession::disconnect

(

)

Disconnects the NETCONF session.

editData()

bool common::NetconfSession::editData

(

const std::string &

configXml

)

Edits the configuration data on the NETCONF server into the candidate datastore.

Parameters

configXml

The configuration data in XML format.

Returns

true if the edit operation is successful, false otherwise.

getData()

struct lyd_node * common::NetconfSession::getData

(

const std::string &

xpath = ""

)

Retrieves data from the NETCONF server using the specified XPath filter.

Parameters

xpath

The XPath filter to apply (default is empty, which retrieves all data).

Returns

The retrieved data as a lyd_node pointer.

isConnected()

bool common::NetconfSession::isConnected

(

)

const

Checks if the NETCONF session is currently connected.

Returns

true if connected, false otherwise.

startNotificationListener()

void common::NetconfSession::startNotificationListener

(

)

Starts a background thread to listen for incoming notifications and dispatch them to registered callbacks.

stopNotificationListener()

void common::NetconfSession::stopNotificationListener

(

)

Stops the background notification listener thread and cleans up resources.

subscribe()

bool common::NetconfSession::subscribe	(	const std::string &	xpath,
		std::function< void(struct lyd_node *)>	callback
	)

Subscribes to notifications matching the specified XPath filter and registers a callback.

Parameters

xpath	The XPath filter for notifications to subscribe to.
callback	The callback function to invoke when a matching notification is received.

Returns

true if the subscription is successful, false otherwise.

Member Data Documentation

listenerThread_

std::thread common::NetconfSession::listenerThread_

private

listening_

std::atomic<bool> common::NetconfSession::listening_ {false}

private

session_

struct nc_session* common::NetconfSession::session_ = nullptr

private

subscriptions_

std::map<std::string, std::function<void(struct lyd_node*)> > common::NetconfSession::subscriptions_

private

---

The documentation for this class was generated from the following files:

• cnc/include/NetconfSession.h
• cnc/src/NetconfSession.cpp
