Software TSN Switch: CncServiceImpl Class Reference

#include <CncServiceImpl.h>

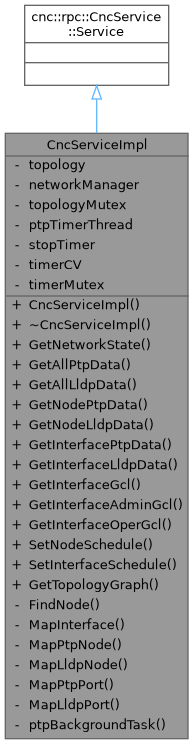

Inheritance diagram for CncServiceImpl:

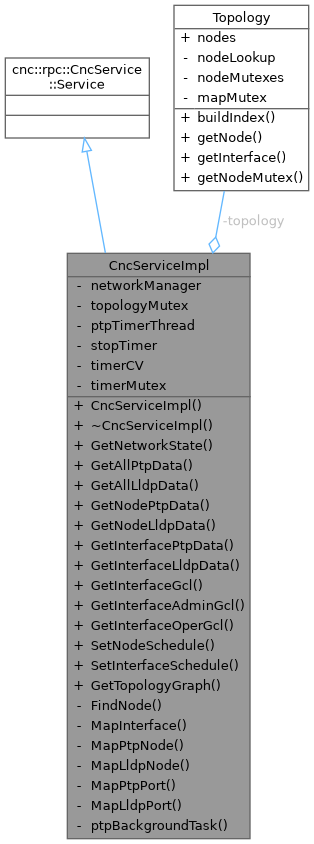

Collaboration diagram for CncServiceImpl:

Public Member Functions
	CncServiceImpl (const std::string &inventoryFilePath)

	~CncServiceImpl ()

grpc::Status	GetNetworkState (grpc::ServerContext context, const cnc::rpc::EmptyRequest request, cnc::rpc::Topology *response) override
	gRPC method implementation to retrieve the entire network topology, including nodes, interfaces, and their associated LLDP/PTP data.

grpc::Status	GetAllPtpData (grpc::ServerContext context, const cnc::rpc::EmptyRequest request, cnc::rpc::AllPtpDataResponse *response) override
	gRPC method implementation to retrieve all PTP data across all nodes and interfaces in the network.

grpc::Status	GetAllLldpData (grpc::ServerContext context, const cnc::rpc::EmptyRequest request, cnc::rpc::AllLldpDataResponse *response) override
	gRPC method implementation to retrieve all LLDP data across all nodes and interfaces in the network.

grpc::Status	GetNodePtpData (grpc::ServerContext context, const cnc::rpc::NodeRequest request, cnc::rpc::PtpNode *response) override
	gRPC method implementation to retrieve node-specific PTP data for a given node identified by its hostname.

grpc::Status	GetNodeLldpData (grpc::ServerContext context, const cnc::rpc::NodeRequest request, cnc::rpc::LldpNode *response) override
	gRPC method implementation to retrieve node-specific LLDP data for a given node identified by its hostname.

grpc::Status	GetInterfacePtpData (grpc::ServerContext context, const cnc::rpc::InterfaceRequest request, cnc::rpc::PtpPort *response) override
	gRPC method implementation to retrieve interface-specific PTP data for a given interface identified by node hostname and interface name.

grpc::Status	GetInterfaceLldpData (grpc::ServerContext context, const cnc::rpc::InterfaceRequest request, cnc::rpc::LldpPort *response) override
	gRPC method implementation to retrieve interface-specific LLDP data for a given interface identified by node hostname and interface name.

grpc::Status	GetInterfaceGcl (grpc::ServerContext context, const cnc::rpc::InterfaceRequest request, cnc::rpc::GclConfig *response) override
	gRPC method implementation to retrieve GCL (Gate Control List) data for a specific interface identified by node hostname and interface name.

grpc::Status	GetInterfaceAdminGcl (grpc::ServerContext context, const cnc::rpc::InterfaceRequest request, cnc::rpc::AdminGclResponse *response) override
	gRPC method implementation to retrieve administrative GCL (Gate Control List) data for a specific interface identified by node hostname and interface name.

grpc::Status	GetInterfaceOperGcl (grpc::ServerContext context, const cnc::rpc::InterfaceRequest request, cnc::rpc::OperGclResponse *response) override
	gRPC method implementation to retrieve operational GCL (Gate Control List) data for a specific interface identified by node hostname and interface name.

grpc::Status	SetNodeSchedule (grpc::ServerContext context, const cnc::rpc::SetNodeScheduleRequest request, cnc::rpc::SetNodeScheduleResponse *response)
	gRPC method implementation to set schedules for all interfaces on a specific node identified by its hostname.

grpc::Status	SetInterfaceSchedule (grpc::ServerContext context, const cnc::rpc::SetInterfaceScheduleRequest request, cnc::rpc::IetfInterface *response)
	gRPC method implementation to set the schedule for a specific interface identified by node hostname and interface name.

grpc::Status	GetTopologyGraph (grpc::ServerContext context, const cnc::rpc::EmptyRequest request, cnc::rpc::TopologyGraph *response)
	gRPC method implementation to retrieve the topology graph of the network, which includes the nodes and their interconnections based on LLDP data.

Private Member Functions
CncNode_t *	FindNode (const std::string &hostName)

void	MapInterface (const ietfInterface_t &internalIface, cnc::rpc::IetfInterface *protoIface)
	Maps an internal CncNode_t structure to a cnc::rpc::Node protobuf message.

void	MapPtpNode (const PtpNode_t &internalPtp, cnc::rpc::PtpNode *protoPtp)
	Maps an internal PtpNode_t structure to a cnc::rpc::PtpNode protobuf message.

void	MapLldpNode (const LldpNode_t &internalLldp, cnc::rpc::LldpNode *protoLldp)
	Maps an internal LldpNode_t structure to a cnc::rpc::LldpNode protobuf message.

void	MapPtpPort (const PtpPort_t &internalPort, cnc::rpc::PtpPort *protoPort)
	Maps an internal PtpPort_t structure to a cnc::rpc::PtpPort protobuf message.

void	MapLldpPort (const LldpPort_t &internalPort, cnc::rpc::LldpPort *protoPort)
	Maps an internal LldpPort_t structure to a cnc::rpc::LldpPort protobuf message.

void	ptpBackgroundTask ()
	Background task that periodically fetches PTP data for all nodes. This function runs in a separate thread and updates the topology with the latest PTP data at regular intervals (every 15 minutes). It uses a condition variable to wait for the next fetch interval or to be notified when the service is shutting down.

Private Attributes
Topology	topology

std::unique_ptr< cnc::NetworkManager >	networkManager

std::shared_mutex	topologyMutex

std::thread	ptpTimerThread

std::atomic< bool >	stopTimer {false}

std::condition_variable	timerCV

std::mutex	timerMutex

Constructor & Destructor Documentation

◆ CncServiceImpl()

CncServiceImpl::CncServiceImpl ( const std::string & inventoryFilePath )

◆ ~CncServiceImpl()

CncServiceImpl::~CncServiceImpl ( )

Member Function Documentation

◆ FindNode()

CncNode_t * CncServiceImpl::FindNode ( const std::string & hostName )

private

◆ GetAllLldpData()

grpc::Status CncServiceImpl::GetAllLldpData	(	grpc::ServerContext *	context,
		const cnc::rpc::EmptyRequest *	request,
		cnc::rpc::AllLldpDataResponse *	response
	)

override

gRPC method implementation to retrieve all LLDP data across all nodes and interfaces in the network.

Parameters

context	the gRPC server context for the request
request	an empty request message (no parameters needed)
response	the protobuf message to be filled with all LLDP data from the network to be returned to the client

Returns: a gRPC status indicating the success or failure of the operation

◆ GetAllPtpData()

grpc::Status CncServiceImpl::GetAllPtpData	(	grpc::ServerContext *	context,
		const cnc::rpc::EmptyRequest *	request,
		cnc::rpc::AllPtpDataResponse *	response
	)

override

gRPC method implementation to retrieve all PTP data across all nodes and interfaces in the network.

Parameters

context	the gRPC server context for the request
request	an empty request message (no parameters needed)
response	the protobuf message to be filled with all PTP data from the network to be returned to the client

Returns: a gRPC status indicating the success or failure of the operation

◆ GetInterfaceAdminGcl()

grpc::Status CncServiceImpl::GetInterfaceAdminGcl	(	grpc::ServerContext *	context,
		const cnc::rpc::InterfaceRequest *	request,
		cnc::rpc::AdminGclResponse *	response
	)

override

gRPC method implementation to retrieve administrative GCL (Gate Control List) data for a specific interface identified by node hostname and interface name.

Parameters

context	the gRPC server context for the request
request	the protobuf message InterfaceRequest containing the hostname of the node and the name of the interface for which administrative GCL data is requested
response	the protobuf message to be filled with the administrative GCL data of the specified interface to be returned to the client

Returns: a gRPC status indicating the success or failure of the operation

◆ GetInterfaceGcl()

grpc::Status CncServiceImpl::GetInterfaceGcl	(	grpc::ServerContext *	context,
		const cnc::rpc::InterfaceRequest *	request,
		cnc::rpc::GclConfig *	response
	)

override

gRPC method implementation to retrieve GCL (Gate Control List) data for a specific interface identified by node hostname and interface name.

Parameters

context	the gRPC server context for the request
request	the protobuf message InterfaceRequest containing the hostname of the node and the name of the interface for which GCL data is requested
response	the protobuf message to be filled with the GCL data of the specified interface to be returned to the client

Returns: a gRPC status indicating the success or failure of the operation

◆ GetInterfaceLldpData()

grpc::Status CncServiceImpl::GetInterfaceLldpData	(	grpc::ServerContext *	context,
		const cnc::rpc::InterfaceRequest *	request,
		cnc::rpc::LldpPort *	response
	)

override

gRPC method implementation to retrieve interface-specific LLDP data for a given interface identified by node hostname and interface name.

Parameters

context	the gRPC server context for the request
request	the protobuf message InterfaceRequest containing the hostname of the node and the name of the interface for which LLDP data is requested
response	the protobuf message to be filled with the LLDP data of the specified interface to be returned to the client

Returns: a gRPC status indicating the success or failure of the operation

◆ GetInterfaceOperGcl()

grpc::Status CncServiceImpl::GetInterfaceOperGcl	(	grpc::ServerContext *	context,
		const cnc::rpc::InterfaceRequest *	request,
		cnc::rpc::OperGclResponse *	response
	)

override

gRPC method implementation to retrieve operational GCL (Gate Control List) data for a specific interface identified by node hostname and interface name.

Parameters

context	the gRPC server context for the request
request	the protobuf message InterfaceRequest containing the hostname of the node and the name of the interface for which operational GCL data is requested
response	the protobuf message to be filled with the operational GCL data of the specified interface to be returned to the client

Returns: a gRPC status indicating the success or failure of the operation

◆ GetInterfacePtpData()

grpc::Status CncServiceImpl::GetInterfacePtpData	(	grpc::ServerContext *	context,
		const cnc::rpc::InterfaceRequest *	request,
		cnc::rpc::PtpPort *	response
	)

override

gRPC method implementation to retrieve interface-specific PTP data for a given interface identified by node hostname and interface name.

Parameters

context	the gRPC server context for the request
request	the protobuf message InterfaceRequest containing the hostname of the node and the name of the interface for which PTP data is requested
response	the protobuf message to be filled with the PTP data of the specified interface to be returned to the client

Returns: a gRPC status indicating the success or failure of the operation

◆ GetNetworkState()

grpc::Status CncServiceImpl::GetNetworkState	(	grpc::ServerContext *	context,
		const cnc::rpc::EmptyRequest *	request,
		cnc::rpc::Topology *	response
	)

override

gRPC method implementation to retrieve the entire network topology, including nodes, interfaces, and their associated LLDP/PTP data.

Parameters

context	the gRPC server context for the request
request	an empty request message (no parameters needed)
response	the protobuf message to be filled with the complete network topology data to be returned to the client

Returns: a gRPC status indicating the success or failure of the operation

◆ GetNodeLldpData()

grpc::Status CncServiceImpl::GetNodeLldpData	(	grpc::ServerContext *	context,
		const cnc::rpc::NodeRequest *	request,
		cnc::rpc::LldpNode *	response
	)

override

gRPC method implementation to retrieve node-specific LLDP data for a given node identified by its hostname.

Parameters

context	the gRPC server context for the request
request	the protobuf message NodeRequest containing the hostname of the node for which LLDP data is requested
response	the protobuf message to be filled with the LLDP data of the specified node to be returned to the client

Returns: a gRPC status indicating the success or failure of the operation

◆ GetNodePtpData()

grpc::Status CncServiceImpl::GetNodePtpData	(	grpc::ServerContext *	context,
		const cnc::rpc::NodeRequest *	request,
		cnc::rpc::PtpNode *	response
	)

override

gRPC method implementation to retrieve node-specific PTP data for a given node identified by its hostname.

Parameters

context	the gRPC server context for the request
request	the protobuf message NodeRequest containing the hostname of the node for which PTP data is requested
response	the protobuf message to be filled with the PTP data of the specified node to be returned to the client

Returns: a gRPC status indicating the success or failure of the operation

◆ GetTopologyGraph()

grpc::Status CncServiceImpl::GetTopologyGraph	(	grpc::ServerContext *	context,
		const cnc::rpc::EmptyRequest *	request,
		cnc::rpc::TopologyGraph *	response
	)

gRPC method implementation to retrieve the topology graph of the network, which includes the nodes and their interconnections based on LLDP data.

Parameters

context	the gRPC server context for the request
request	an empty request message (no parameters needed)
response	the protobuf message to be filled with the topology graph data (nodes and their connections) to be returned to the client

Returns: a gRPC status indicating the success or failure of the operation

◆ MapInterface()

void CncServiceImpl::MapInterface	(	const ietfInterface_t &	internalIface,
		cnc::rpc::IetfInterface *	protoIface
	)

private

Maps an internal CncNode_t structure to a cnc::rpc::Node protobuf message.

Parameters

internalIface	the internal ietfInterface_t structure containing the interface data to be mapped
protoIface	the protobuf message to be filled with the mapped data from internalIface

◆ MapLldpNode()

void CncServiceImpl::MapLldpNode	(	const LldpNode_t &	internalLldp,
		cnc::rpc::LldpNode *	protoLldp
	)

private

Maps an internal LldpNode_t structure to a cnc::rpc::LldpNode protobuf message.

Parameters

internalLldp	the internal LldpNode_t structure containing the LLDP data to be mapped
protoLldp	the protobuf message to be filled with the mapped data from internalLldp

◆ MapLldpPort()

void CncServiceImpl::MapLldpPort	(	const LldpPort_t &	internalPort,
		cnc::rpc::LldpPort *	protoPort
	)

private

Maps an internal LldpPort_t structure to a cnc::rpc::LldpPort protobuf message.

Parameters

internalPort	the internal LldpPort_t structure containing the LLDP port data to be mapped
protoPort	the protobuf message to be filled with the mapped data from internalPort

◆ MapPtpNode()

void CncServiceImpl::MapPtpNode	(	const PtpNode_t &	internalPtp,
		cnc::rpc::PtpNode *	protoPtp
	)

private

Maps an internal PtpNode_t structure to a cnc::rpc::PtpNode protobuf message.

Parameters

internalPtp	the internal PtpNode_t structure containing the PTP data to be mapped
protoPtp	the protobuf message to be filled with the mapped data from internalPtp

◆ MapPtpPort()

void CncServiceImpl::MapPtpPort	(	const PtpPort_t &	internalPort,
		cnc::rpc::PtpPort *	protoPort
	)

private

Maps an internal PtpPort_t structure to a cnc::rpc::PtpPort protobuf message.

Parameters

internalPort	the internal PtpPort_t structure containing the PTP port data to be mapped
protoPort	the protobuf message to be filled with the mapped data from internalPort

◆ ptpBackgroundTask()

void CncServiceImpl::ptpBackgroundTask ( )

private

Background task that periodically fetches PTP data for all nodes. This function runs in a separate thread and updates the topology with the latest PTP data at regular intervals (every 15 minutes). It uses a condition variable to wait for the next fetch interval or to be notified when the service is shutting down.

◆ SetInterfaceSchedule()

grpc::Status CncServiceImpl::SetInterfaceSchedule	(	grpc::ServerContext *	context,
		const cnc::rpc::SetInterfaceScheduleRequest *	request,
		cnc::rpc::IetfInterface *	response
	)

gRPC method implementation to set the schedule for a specific interface identified by node hostname and interface name.

Parameters

context	the gRPC server context for the request
request	the protobuf message SetInterfaceScheduleRequest containing the hostname of the node, the name of the interface, and the schedule data to be set for that specific interface
response	the protobuf message to be filled with the result of the schedule setting operation (e.g., success status, error messages) to be returned to the client

Returns: a gRPC status indicating the success or failure of the operation

◆ SetNodeSchedule()

grpc::Status CncServiceImpl::SetNodeSchedule	(	grpc::ServerContext *	context,
		const cnc::rpc::SetNodeScheduleRequest *	request,
		cnc::rpc::SetNodeScheduleResponse *	response
	)

gRPC method implementation to set schedules for all interfaces on a specific node identified by its hostname.

Parameters

context	the gRPC server context for the request
request	the protobuf message SetNodeScheduleRequest containing the hostname of the node and the schedule data to be set for all interfaces on that node
response	the protobuf message to be filled with the result of the schedule setting operation (e.g., success status, error messages) to be returned to the client

Returns: a gRPC status indicating the success or failure of the operation

Member Data Documentation

◆ networkManager

std::unique_ptr<cnc::NetworkManager> CncServiceImpl::networkManager

private

◆ ptpTimerThread

std::thread CncServiceImpl::ptpTimerThread

private

◆ stopTimer

std::atomic<bool> CncServiceImpl::stopTimer {false}

private

◆ timerCV

std::condition_variable CncServiceImpl::timerCV

private

◆ timerMutex

std::mutex CncServiceImpl::timerMutex

private

◆ topology

Topology CncServiceImpl::topology

private

◆ topologyMutex

std::shared_mutex CncServiceImpl::topologyMutex

private

The documentation for this class was generated from the following files:

cnc/cncd/include/CncServiceImpl.h
cnc/cncd/src/CncServiceImpl.cpp

Public Member Functions

Private Member Functions

Private Attributes

Constructor & Destructor Documentation

◆ CncServiceImpl()

◆ ~CncServiceImpl()

Member Function Documentation

◆ FindNode()

◆ GetAllLldpData()

◆ GetAllPtpData()

◆ GetInterfaceAdminGcl()

◆ GetInterfaceGcl()

◆ GetInterfaceLldpData()

◆ GetInterfaceOperGcl()

◆ GetInterfacePtpData()

◆ GetNetworkState()

◆ GetNodeLldpData()

◆ GetNodePtpData()

◆ GetTopologyGraph()

◆ MapInterface()

◆ MapLldpNode()

◆ MapLldpPort()

◆ MapPtpNode()

◆ MapPtpPort()

◆ ptpBackgroundTask()

◆ SetInterfaceSchedule()

◆ SetNodeSchedule()

Member Data Documentation

◆ networkManager

◆ ptpTimerThread

◆ stopTimer

◆ timerCV

◆ timerMutex

◆ topology

◆ topologyMutex
