cnc::NetworkManager Class Reference

Coordinates NETCONF-based communication and TSN configuration workflows across topology nodes. More...

#include <NetworkManager.h>

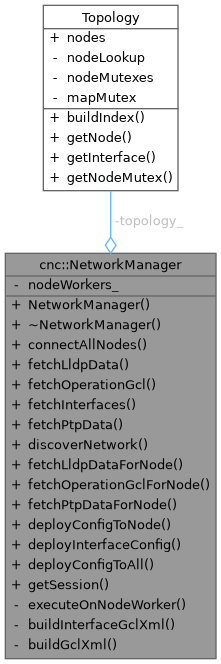

Collaboration diagram for cnc::NetworkManager:

Public Member Functions
	NetworkManager (Topology &topology)
	Constructs a NetworkManager with the given topology reference.
	~NetworkManager ()
	Destructor for NetworkManager. Disconnects all active sessions.
bool	connectAllNodes (const InventoryMap &inventory)
	Connects to all nodes in the topology using the provided credentials.
void	fetchLldpData ()
	Fetches LLDP data from all connected nodes and updates the topology. Reads LLDP data via /ietf-lldp:lldp-entries via Netconf <get>.
void	fetchOperationGcl ()
	Fetches operational GCL data from all connected nodes and updates their configurations. Reads GCL data via /interfaces/interface/bridge-port/gate-parameter-table via Netconf <get>.
void	fetchInterfaces ()
	Fetches interface data from all connected nodes and updates the topology. Reads interface data via /ietf-interfaces:interfaces/interface via Netconf <get>.
void	fetchPtpData ()
	Fetches PTP data from all connected nodes and updates the topology. Reads PTP data via /ieee1588-ptp:ptp-data via Netconf <get>.
void	discoverNetwork ()
	Discovers the network topology and populating the Topology structure.
bool	fetchLldpDataForNode (const std::string &nodeName)
	Fetches LLDP data for a specific node and updates the topology.
bool	fetchOperationGclForNode (const std::string &nodeName)
	Fetches operational GCL data for a specific node and updates the topology.
bool	fetchPtpDataForNode (const std::string &nodeName)
	Fetches PTP data for a specific node and updates the topology.
bool	deployConfigToNode (const std::string &nodeName)
	Configures specific nodes with TSN parameters.
bool	deployInterfaceConfig (const std::string &nodeName, const std::string &ifaceName)
	Configures a specific interface on a node with its TSN parameters.
void	deployConfigToAll ()
	Configures all nodes in the topology with their respective TSN parameters.
std::shared_ptr< common::NetconfSession >	getSession (const std::string &nodeName)
	Retrieves the Netconf session for a given node by its hostname.

Private Member Functions
bool	executeOnNodeWorker (const std::string &nodeName, std::function< void(std::shared_ptr< common::NetconfSession >)> task)
std::string	buildInterfaceGclXml (const ietfInterface_t &iface)

Static Private Member Functions
static std::string	buildGclXml (const CncNode_t &node)
	Builds the XML configuration for GCL based on the node's TSN parameters.

Private Attributes
Topology &	topology_
std::map< std::string, std::shared_ptr< NodeWorker > >	nodeWorkers_

Detailed Description

Coordinates NETCONF-based communication and TSN configuration workflows across topology nodes.

This class manages per-node NETCONF sessions, retrieves operational LLDP and GCL data, and applies generated TSN/GCL configuration back to devices. It serves as the orchestration layer between topology state, inventory credentials, XML builders/parsers, and device-facing NETCONF operations.

Constructor & Destructor Documentation

NetworkManager()

cnc::NetworkManager::NetworkManager

(

Topology &

topology

)

Constructs a NetworkManager with the given topology reference.

Parameters

topology

Reference to the Topology object managing network nodes.

~NetworkManager()

cnc::NetworkManager::~NetworkManager

(

)

Destructor for NetworkManager. Disconnects all active sessions.

Member Function Documentation

buildGclXml()

std::string cnc::NetworkManager::buildGclXml ( const CncNode_t &  node )

staticprivate

Builds the XML configuration for GCL based on the node's TSN parameters.

Parameters

node	The CncNode_t containing TSN parameters.

Returns

The XML string representing the GCL configuration.

buildInterfaceGclXml()

std::string cnc::NetworkManager::buildInterfaceGclXml ( const ietfInterface_t &  iface )

private

connectAllNodes()

bool cnc::NetworkManager::connectAllNodes

(

const InventoryMap &

inventory

)

Connects to all nodes in the topology using the provided credentials.

Parameters

inventory

The inventory map containing device credentials (hostname to DeviceCredentials_t).

Returns

true if all nodes were connected successfully, false otherwise.

deployConfigToAll()

void cnc::NetworkManager::deployConfigToAll

(

)

Configures all nodes in the topology with their respective TSN parameters.

deployConfigToNode()

bool cnc::NetworkManager::deployConfigToNode

(

const std::string &

nodeName

)

Configures specific nodes with TSN parameters.

1. Transforms CncNode_t data into appropriate XML configuration.
2. Sends configuration via Netconf <edit-config> to the target nodes (candidate datastore).
3. Commits the configuration to the running datastore.

   Parameters

   nodeName

   The hostname of the node to configure.

   Returns

   true if the configuration was successfully deployed, false otherwise.

deployInterfaceConfig()

bool cnc::NetworkManager::deployInterfaceConfig	(	const std::string &	nodeName,
		const std::string &	ifaceName
	)

Configures a specific interface on a node with its TSN parameters.

1. Transforms the interface's TSN parameters into appropriate XML configuration.
2. Sends configuration via Netconf <edit-config> to the target node (candidate datastore).
3. Commits the configuration to the running datastore.

   Parameters

   nodeName	The hostname of the node containing the interface to configure.
   ifaceName	The name of the interface to configure.

   Returns

   true if the configuration was successfully deployed, false otherwise.

discoverNetwork()

void cnc::NetworkManager::discoverNetwork

(

)

Discovers the network topology and populating the Topology structure.

executeOnNodeWorker()

bool cnc::NetworkManager::executeOnNodeWorker ( const std::string &  nodeName, std::function< void(std::shared_ptr< common::NetconfSession >)>  task  )

private

fetchInterfaces()

void cnc::NetworkManager::fetchInterfaces

(

)

Fetches interface data from all connected nodes and updates the topology. Reads interface data via /ietf-interfaces:interfaces/interface via Netconf <get>.

fetchLldpData()

void cnc::NetworkManager::fetchLldpData

(

)

Fetches LLDP data from all connected nodes and updates the topology. Reads LLDP data via /ietf-lldp:lldp-entries via Netconf <get>.

fetchLldpDataForNode()

bool cnc::NetworkManager::fetchLldpDataForNode

(

const std::string &

nodeName

)

Fetches LLDP data for a specific node and updates the topology.

Parameters

nodeName

The hostname of the node to fetch LLDP data from.

Returns

true if the LLDP data was successfully fetched and parsed, false otherwise.

fetchOperationGcl()

void cnc::NetworkManager::fetchOperationGcl

(

)

Fetches operational GCL data from all connected nodes and updates their configurations. Reads GCL data via /interfaces/interface/bridge-port/gate-parameter-table via Netconf <get>.

fetchOperationGclForNode()

bool cnc::NetworkManager::fetchOperationGclForNode

(

const std::string &

nodeName

)

Fetches operational GCL data for a specific node and updates the topology.

Parameters

nodeName

The hostname of the node to fetch GCL data from.

Returns

true if the GCL data was successfully fetched and parsed, false otherwise.

fetchPtpData()

void cnc::NetworkManager::fetchPtpData

(

)

Fetches PTP data from all connected nodes and updates the topology. Reads PTP data via /ieee1588-ptp:ptp-data via Netconf <get>.

fetchPtpDataForNode()

bool cnc::NetworkManager::fetchPtpDataForNode

(

const std::string &

nodeName

)

Fetches PTP data for a specific node and updates the topology.

Parameters

nodeName

The hostname of the node to fetch PTP data from.

Returns

true if the PTP data was successfully fetched and parsed, false otherwise.

getSession()

std::shared_ptr< common::NetconfSession > cnc::NetworkManager::getSession

(

const std::string &

nodeName

)

Retrieves the Netconf session for a given node by its hostname.

Parameters

nodeName

The hostname of the node.

Returns

Shared pointer to the NetconfSession if found, nullptr otherwise.

Member Data Documentation

nodeWorkers_

std::map<std::string, std::shared_ptr<NodeWorker> > cnc::NetworkManager::nodeWorkers_

private

topology_

Topology& cnc::NetworkManager::topology_

private

---

The documentation for this class was generated from the following files:

• cnc/include/NetworkManager.h
• cnc/src/NetworkManager.cpp
